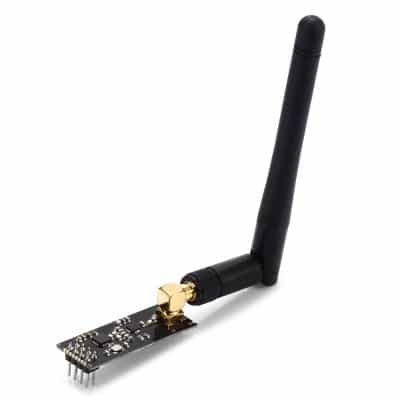

NRF24L01 RF transceiver
This is a very low-cost NRF24L01 RF transceiver module. This module uses the 2.4GHz nRF24L01 + transceiver, the latest manufactured by Nordic Semiconductor. This integrated operates in the 2.4GHz band and has many interesting new features, such as additional buffers and auto-retransmission.
This nrf24l01 rf transceiver module includes a 100mW amplifier and a low noise amplifier, allowing you to achieve 1000 meters range in the open air.
It can be used in a project without the need for any RF design, simply connect to the SPI interface via an 8-pin connector.
ATTENTION: The module is powered by 3V. But its communication pins tolerate logic of 5V, like that of Arduino.
Characteristics:
- Power supply voltage: 3-3.6V (3.3V recommended)
- 5V tolerant data inputs
- Max output power: +20 dBm
- Current (maxima) in emission mode: 115 mA
- Current (maxima) in receiving mode: 45 mA
- Sleep-off mode: 4.2uA
- Sensitivity at 2 Mbps in receive mode: -92dBm
- Sensitivity at 1 Mbps in reception mode: -95 dBm
- Sensitivity to 250 kbps in receive mode: -104dBm
- PA gain: 20dB
- LNA gain: 10dB
- LNA noise figure: 2.6 dB
- Antenna gain (peak): 2 dBi
- Distance to 2MB rate (open area): 520m
- Distance to 1MB rate (open area): 750m
- Distance to 250Kb rate (open area): 1000m
