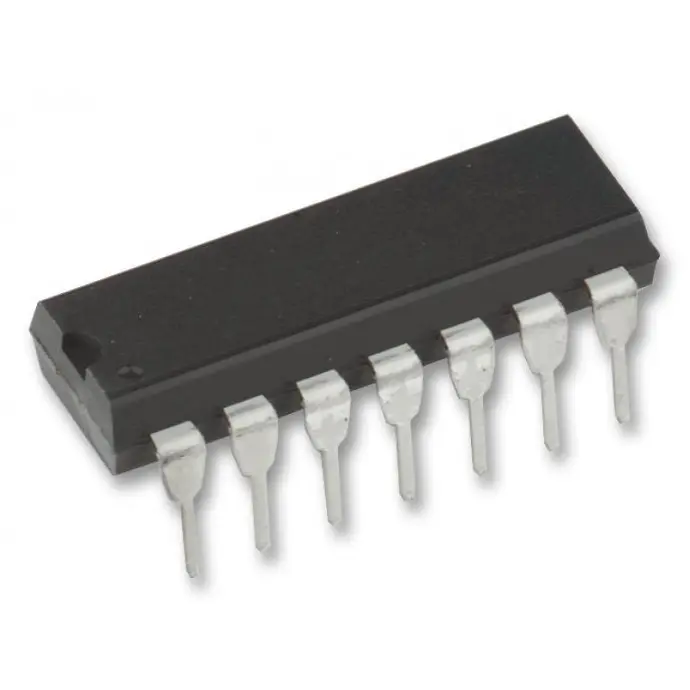

74LS73 Flip Flop
Flip flops are very common components found in digital circuits that has to work with memory. Flip flops enable you to save data that has been sent to it from an external logic circuit, or from a shift register. One of the most common applications where flip flops and shift registers are used together is when external circuitry is used to randomize the output of a shift register and then the flip flop is used to store the output data of the shift register.
Technical information:
Max supply voltage | 5.5V |
| Max input voltage | 5.5V |
| Max low level input voltage | 0.8V |
| Min high level input voltage | 2V |
| Max clock frequency | 45MHz |
Pin layout:
Truth table:
