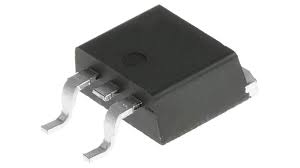

L7805CD2T-TR (package TO-263-2)

The L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three-terminal positive linear voltage regulators can remove problems that are related to single-point regulation by providing local on-card regulation. The  Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.

Features and Benefits

Output current up to 1.5 A
Thermal overload protection
Output transition SOA protection
Output current up to 1.5 A
Output voltages of 5V

Datasheet: L7805

Block diagram
