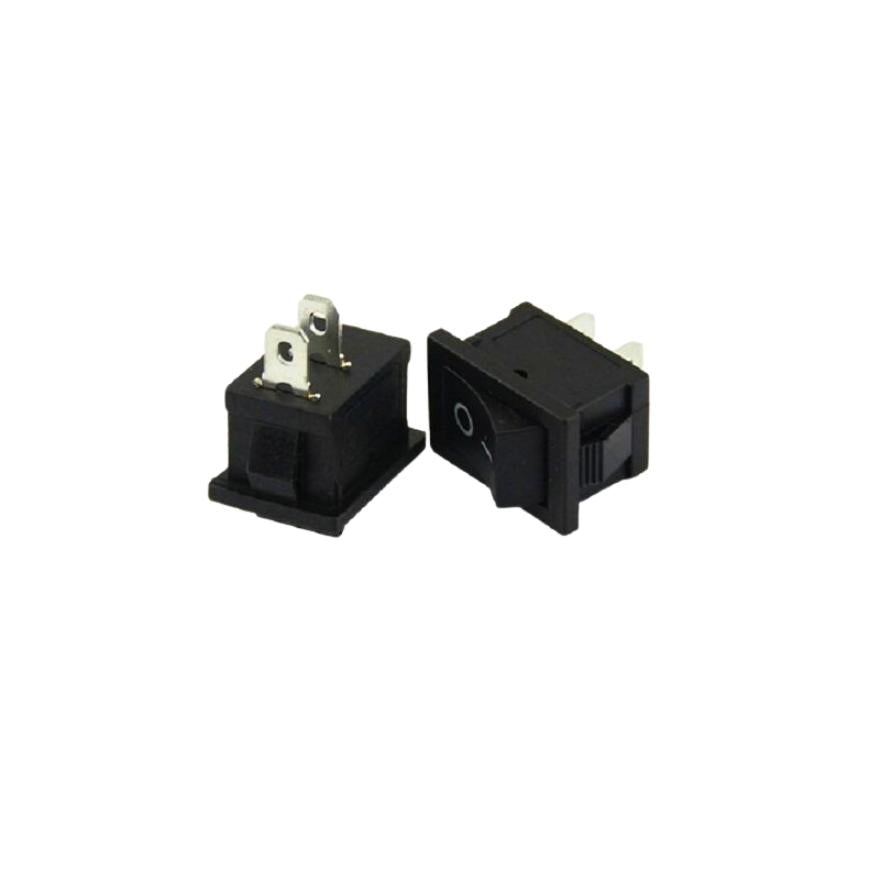

Rocker switch panel mount on-off
This is a basic on/off switch for your projects. No screws required, it simply clips into place. This is a two-pin switch that is easy to use, simply cut one of the two power wires and solder each of the ends to the unit.
Tech Specs:
Rating | 3A 250V |
Poles | SPST |
Terminal | 2-Pin(ON-OFF) |
Contact resistance | ≤30mΩ |
Insulation resistance | ≥100MΩ at 500V DC |
Dielectric strength | 1500V AC for 1 minute |
Operating temperature | -25°C - 85°C |
Electrical life | 10000 cycles |
Color | black |
Overall size | Lx15mm, Wx10.5mm, H10.3mm |
