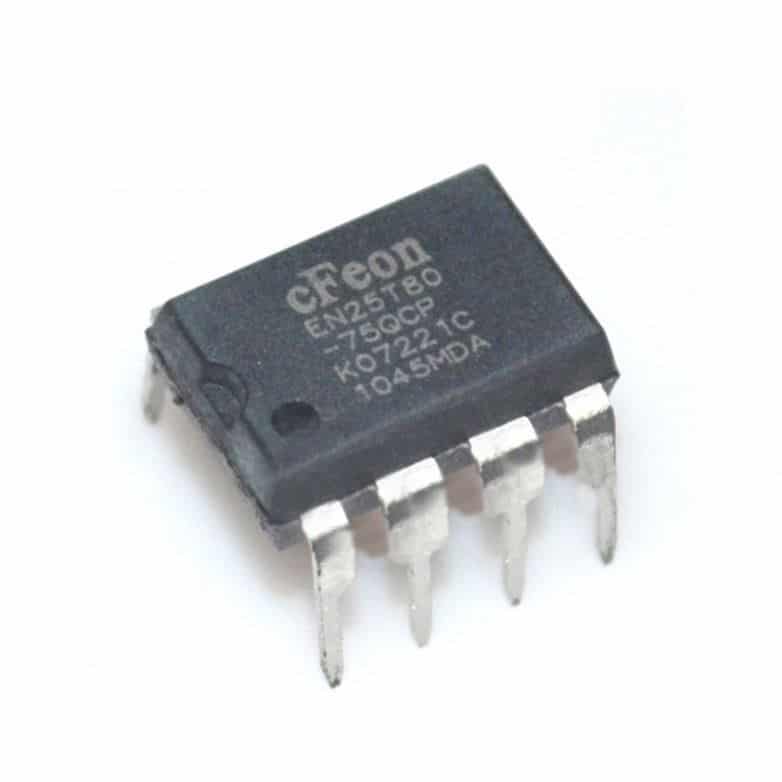

The EN25T80 is an 8M-bit (1024K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high-speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.
The EN25T80 is designed to allow either a single Sector at a time or full chip erase operation. The EN25T80 can be configured to protect part of the memory as the software protected mode. The device can sustain a minimum of 100K program/erase cycles on each sector.
Features:
- Single power supply operation - Full voltage range: 2.7-3.6 volt
- 8 Mbit Serial Flash - 8 M-bit/1024 K-byte/4096 pages - 256 bytes per programmable page
- High performance - 100MHz clock rate - dual data mode
- Low power consumption - 5 mA typical active current - 1 μA typical power-down current
- Uniform Sector Architecture: - 256 sectors of 4-Kbyte - 16 blocks of 64-Kbyte - Any sector or block can be erased individually
- Software and Hardware Write Protection:
- Write Protect all or portion of memory via software
- Enable/Disable protection with WP# pin
- High-performance program/erase speed
- Page program time: 1.5ms typical
- The sector erase time: 150ms typical
- Block erase time 800ms typical
- Chip erase time: 10 Seconds typical
- Lockable 256 byte OTP security sector
- Minimum 100K endurance cycle
- Commercial and industrial temperature Range
