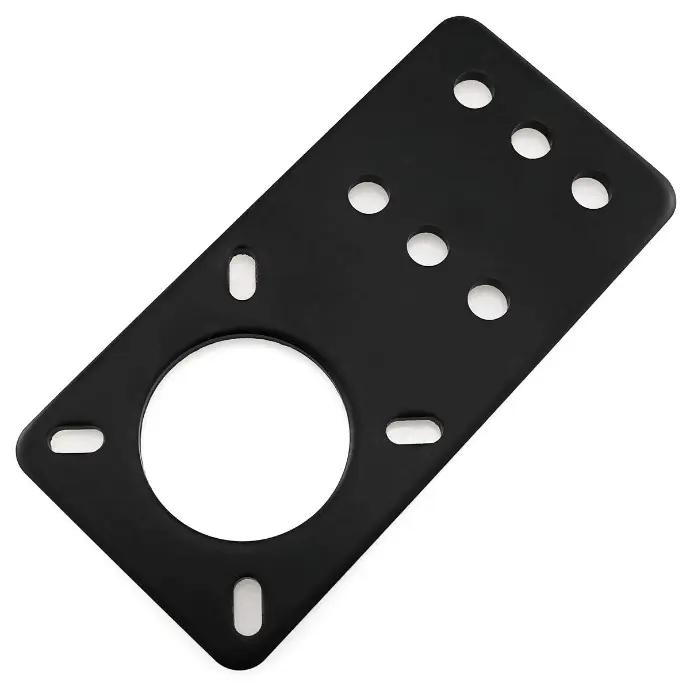

NEMA17 and 775 DC Motor bracket Straight

This universal mounting bracket for the NEMA 17 stepper motor or the High Torque 775 Motor is perfect for mounting your desired motor. It allows for various motors to be mounted to it while fixing it to your frame with M4 screws. It features sliding screw holes for optimal accuracy in your CNC or 3D Printer.

Technical Specifications:

Vertical : 2mm/0.08inch thick, 5.2cm/2.0inch high, 5.0cm/1.9inch wide, high hardness alloy aluminum.
Bottom: 1.5mm/0.059inch thick,  stainless steel
Center stepped hole: diameter of about 17mm/0.6inch
Motor fixing holes: 4mm/ (for M4 screws)
