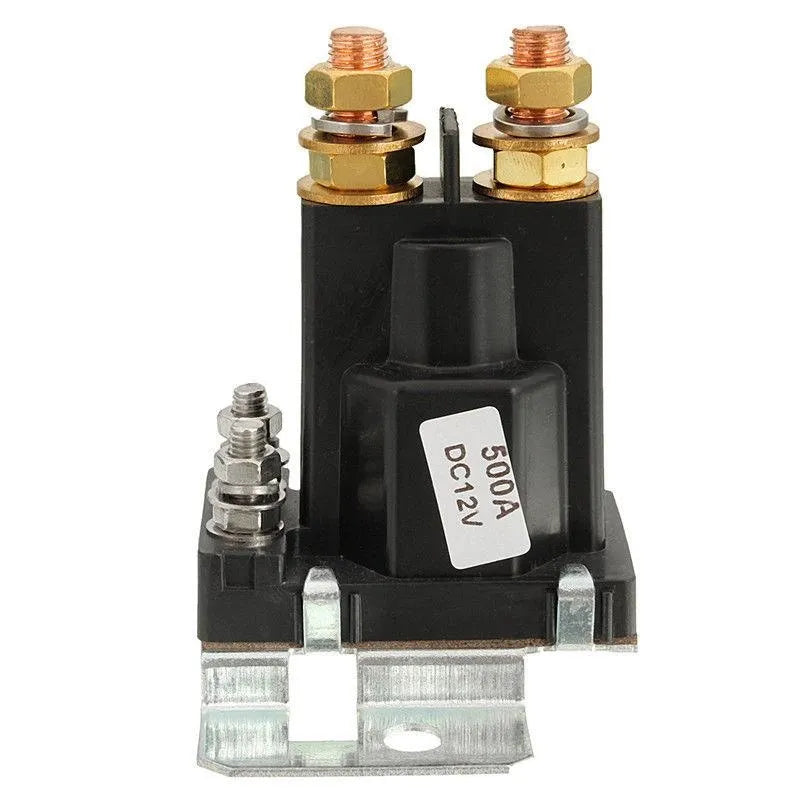

High Current Dual Battery Isolator Relay 4 Pin 12V AMP 500A Car Starter 24V Auto Power Switch Start Contractor relay
The High Current Dual Battery Isolator Relay 4 Pin 12V AMP 500A Car Starter 24V Auto Power Switch Start Contactor relay is a key component in managing the power supply in a vehicle with two batteries. This relay isolates the two batteries, preventing them from discharging each other when the engine is turned off. It features a 4-pin design, a high current rating of 500A, and a 12V AMP rating, suitable for most cars and light trucks. Its latching relay design means it only needs a momentary signal to switch on and stay on until a second signal is received to switch it off, making it an efficient and reliable power switch.
Specification:
- Coil power: 12V DC
- Weight: 235g
- Contact material: AgSn0_27In_20_33
- Contact form: 1H(1A)
- Contact Ratings: 500A
- Life Expectancy Electrical: 100,000 Operations(at 30 Operations/minute)
- Life Expectancy Mechanic: 10,000,000 Operations
COIL SPECIFICATION
- Coil Resistance: (16W) 9Ω
- Minimum Operate Voltage(VDC): 8
- Mix Release Voltage (VDC): 1.2
- Max Applicable Voltage (VDC): 14
- Temperature Range: -30~80℃
- Vibration Resistance: 10-55Hz, 1.5mm
- Operations Extremes: 50g
- Damage Limits: 100g
- Humidity: 40-85%
- Insulation Resistance: 100mΩ min at 500vdc
- Dielectric Strength Between Open Contacts: 2000VAC(for 1 minuter/s)
- Between Contacts and coil: 1500VAC(for 1 minuter/s)
- Operate Time: 50ms
- Release Time: 50ms
