LILYGO ttgo ESP32 HX711 4 Channel iot T-weigh Lora Weighing Module

https://www.botshop.co.za/web/image/product.template/1129/image_1920?unique=f0f299d
(0 review)

This product is no longer available.


Internal Reference: LG-016

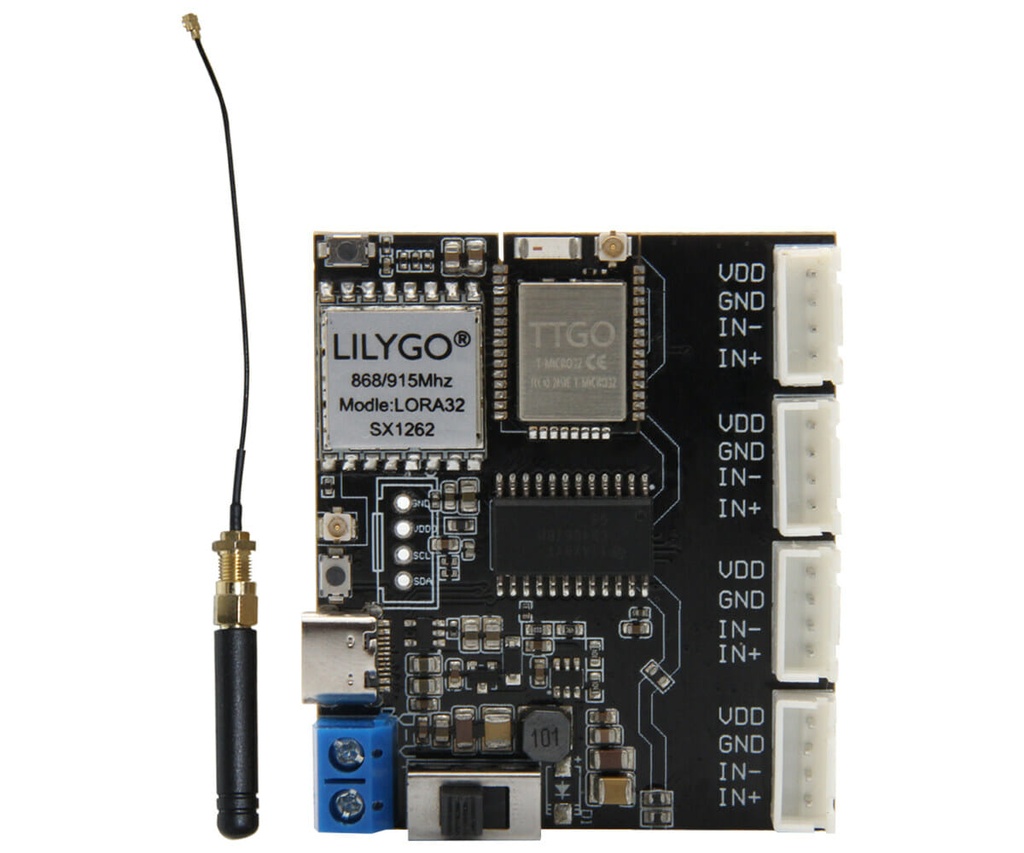

LILYGO TTGO ESP32 HX711 4 Channel IOT T-weigh Lora Weighing Module

Introducing the LILYGO TTGO ESP32 HX711 4 Channel IOT T-weigh Lora Weighing Module! This amazing product is perfect for hobbyists looking to create their own projects that need strong connectivity and fast digital communication. With its MCU, T-Micro32, and 4Mb of Flash, this board ensures optimal performance as well as reliable operation. It can communicate over UART, SPI, I2C, CAN, I2S, or SDIO and comes with Wi-Fi: 802.11 b/g/n/, BLE V4.2 and LoRa frequency band 868/ 915 support giving you even greater flexibility when it comes to wireless connectivity.

Ever wanted to build your own LoRaWAN-connected weighing scale? Me neither, but apparently those types of products already exist for logistics and inventory management, and LilyGO’s latest ESP32 board – the TTGO T-Weigh – is designed for this exact purpose with a Semtech SX1272-based LoRa module and four HX711-24-bit ADC chips.

The board can handle up to four scales that transfer weight data over WiFi, Bluetooth, or LoRaWAN, and should be useful in applications that require weighing goods or products where there are limited connectivity options including logistics and farming.


Pin Out

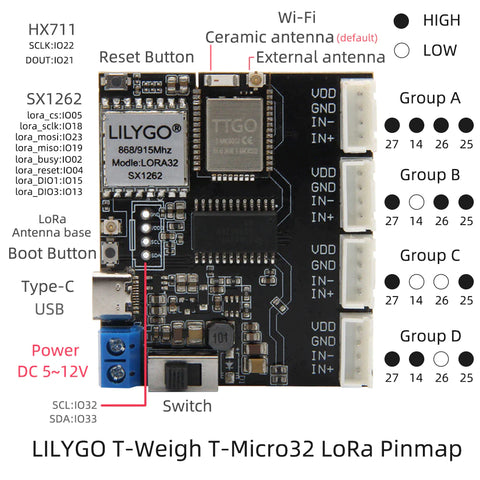

LILYGO TTGO ESP32 HX711 4 Channel IOT T-weigh Lora Weighing Module

The above image gives you the pinout of the LILYGO TTGO ESP32 HX711 4 Channel IOT T-weigh Lora Weighing Module as well as more information regarding the chipsets on the board and what they do.


Connecting the Scale

LILYGO TTGO ESP32 HX711 4 Channel IOT T-weigh Lora Weighing Module

The above images show you how to connect a scale to the LILYGO TTGO ESP32 HX711 4 Channel IOT T-weigh Lora Weighing Module, it also indicates that you can connect up to 4 scales to the device in the same manner as you connected the first scale.


Technical Specification

MCU

T-Micro32

Flash

4Mb

Bus Interfaces

UART, SPI, I2C, CAN, I2S, SDIO

Wireless Connectivity

Wi-Fi: 802.11 b/g/n/, BLE V4.2

LoRa frequency band

868/ 915

Onboard functions

Button (RS+BOOT), DC 5-12V Power

LoRa Transceiver

SX1262

Low RX current of

4.6mA

High sensitivity

Down to -148dBm

Efficiency

+22 dBm or +15 dBm high-efficiency PA

Modulation

FSK, GFSK, MSK, GMSK, and LoRa
