Male to male jumper wires 30cm

https://www.botshop.co.za/web/image/product.template/1211/image_1920?unique=ed6fc98
(0 review)

45.71 45.71 ZAR 45.71 VAT Included

39.75 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: ACC-209

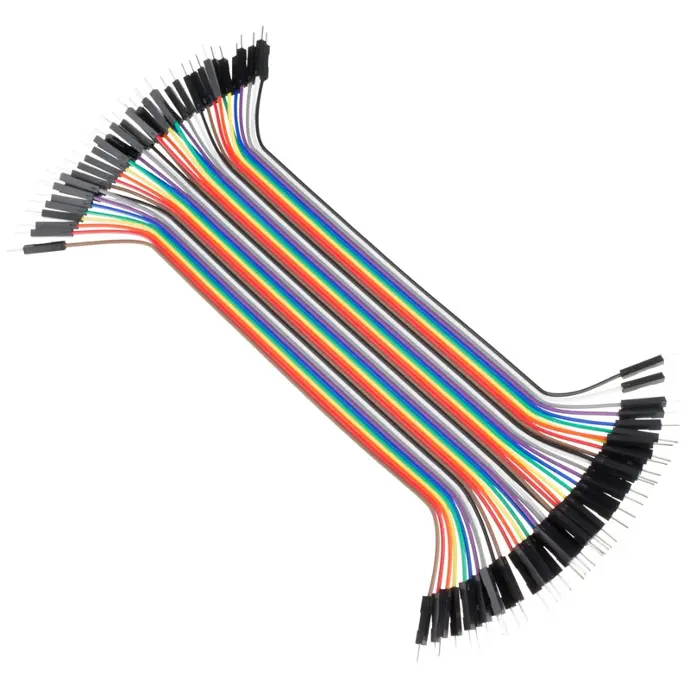

MALE TO MALE JUMPER WIRES 30cm

These 30 cm long 40-conductor cables have male header pins on both ends of the cable.

KEY FEATURES OF MALE / MALE JUMPER WIRES:

Male to male cables are especially handy for using as jumpers between points on a solderless breadboard or connecting solderless breadboards to female headers such as are found on Arduino microcontrollers.

The cables have 10 different wire colors which repeat every 10 wires.  The rainbow colors make it easy to match the same wire at both ends of the cable.

The individual wires are easily pulled apart by hand to create single jumper wires or to make smaller cables consisting of multiple wires which are handy for keeping wires together when connecting small buses or running multiple wires to a sensor.

Notes:

These are designed to work with a standard 0.1″ spacing.  When using them in an adjacent line, it works best to have the silver latch portion of the pin visible (facing out) as that side is slightly wider than 0.1″.

TECHNICAL SPECIFICATIONS

Cable length

30cm

number of wires

40

Conductor gauge

26AWG

Spacing needed for pins

2.54mm
